The Midland 75-785 is a compact Citizens Band (CB) transceiver designed for portable and mobile communications. This manual provides setup, operation, and troubleshooting instructions to help you get the most out of your radio.
Features
40 CB channels
Compact, handheld design
Built-in automatic noise limiter (ANL)
Backlit LCD display
External antenna jack
External DC power jack
Battery compartment for AA batteries

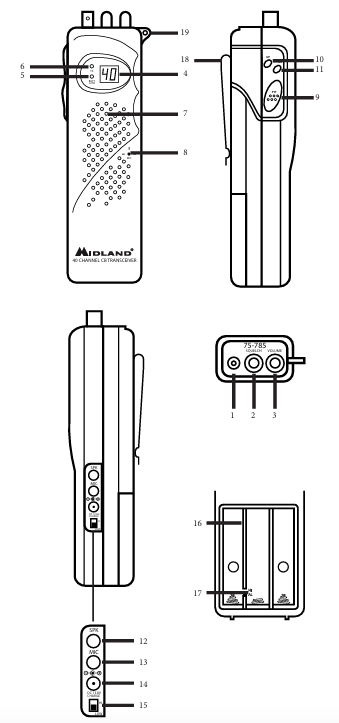

Controls and Indicators
Antenna connector with BNC connector: To obtain better results, use either a telescopic or an external antenna.
Squelch Knob: for the maximum receiver sensitivity, the control must be regulated exactly where the receiver background noise disappears.
On/Off Volume Control: Turn the control clockwise to switch on the unit. Continue turning the knob clockwise to set the audio level, until you get a comfortable reception.
Display: Indicates the selected channel (from 1 to 40). The display turns off when the squelch is operative.
“BATT. LOW” LED: This indicator lights when the batteries are low. Replace the alkaline or recharge the AA Ni-Cd batteries.
“TX” LED: The indicator lights when the unit is transmitting
Speaker
Microphone: during transmission, hold the microphone two inches from your mouth, speaking in a clear, normal voice.
Push to Talk Button (“PTT”): By pressing it, the transmitter is activated. When released, you activate the receiver.
“Channel UP” button: Tunes to the next channel. Autorepeat is activated by holding this button.
“Channel DOWN” button: Tunes to the previous channel. Autorepeat is activated by holding this button.
“SPK” jack: external loudspeaker jack (the internal loudspeaker will be disabled).
“PTT/MIC” jack: PTT jack / external microphone.
13.8 VDC Charge: Power supply/charge jack. You can power the unit from external sources (car battery, etc.) and to recharge the Ni-Cd batteries.
“HI/LOW” Switch: Selects the output power level during transmission.
Battery Compartment: Insert 9 AA alkaline or Ni-Cd batteries. (Note: alkaline batteries are not rechargeable).
NI/AL Switch - Ni-Cd / Alkaline battery type switch
Belt Clip
Hole for wrist strap
Installation
Power Options
Battery Operation: Insert AA alkaline or rechargeable batteries into the battery compartment.
DC Adapter: Plug into a 12V vehicle accessory socket using the external DC power jack.
Antenna Connection
Attach a compatible CB antenna to the antenna jack for best performance.
Ensure the antenna is properly tuned using an SWR meter.
Basic Operation
Turn the Power/Volume Knob clockwise to switch ON.
Adjust the Volume to a comfortable listening level.
Rotate the Squelch Knob clockwise until background noise just disappears.
Use the Channel Selector to choose a channel (1–40).
Press and hold the PTT Button to transmit. Speak clearly into the microphone.
Release the PTT Button to listen.
Channel Frequencies
The 75-785 operates on 40 CB channels (26.965–27.405 MHz).
| Channel | Frequency (MHz) | Usage Example |
|---|---|---|
| 1 | 26.965 | General use |
| 9 | 27.065 | Emergency |
| 19 | 27.185 | Highway/Truckers |
| 40 | 27.405 | General use |
Safety and Handling
Do not use the radio while driving unless safely mounted.
Always use a properly tuned antenna for maximum range and minimum interference.
Avoid exposing the unit to excessive moisture, dust, or extreme temperatures.
Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| No Power | Batteries dead or not installed correctly | Check or replace batteries |
| Poor Reception | Antenna not connected or tuned | Inspect and properly install antenna |
| No Transmission | Weak batteries or faulty PTT | Replace batteries, check microphone |
| Excessive Noise | Squelch not set | Adjust squelch knob |
Specifications
Channels: 40 (26.965–27.405 MHz)
Power Output: 4 Watts (maximum, FCC limit)
Power Supply: 9V battery pack or 13.8V DC external
Antenna Impedance: 50 ohms
Dimensions: Compact handheld design
Weight: Lightweight for portable use
