The Midland T50 is a Family Radio Service (FRS) walkie talkie designed for everyday communication with 22 channels, weather alerts, VOX hands-free mode, privacy codes, and other practical features.
Key Features
- 22 FRS Channels
- 38 CTCSS Privacy Codes
- NOAA Weather Radio + Alerts
- VOX (3 levels)
- Call Alert Tone
- Roger Beep Tone
- Silent Operation Mode
- Scan & Monitor Functions
- Keypad Lock
- Battery Meter & Low Battery Indicator
- USB Charging Jack
- External Speaker/Microphone Jack

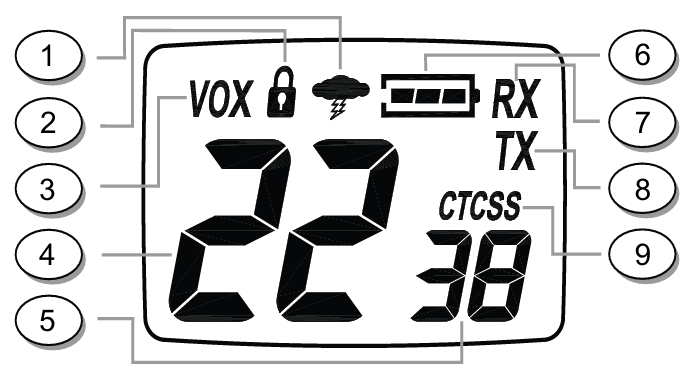

LCD Display Icons
- WX Icon – NOAA weather mode
- Key Lock – Indicates keypad lock
- VOX – Indicates VOX is active
- Channel Number (1–22 FRS / 1–10 WX)
- Privacy Code (oF–38)
- Battery Meter
- RX – Receiving a signal
- TX – Transmitting
-
Privacy Code Icon

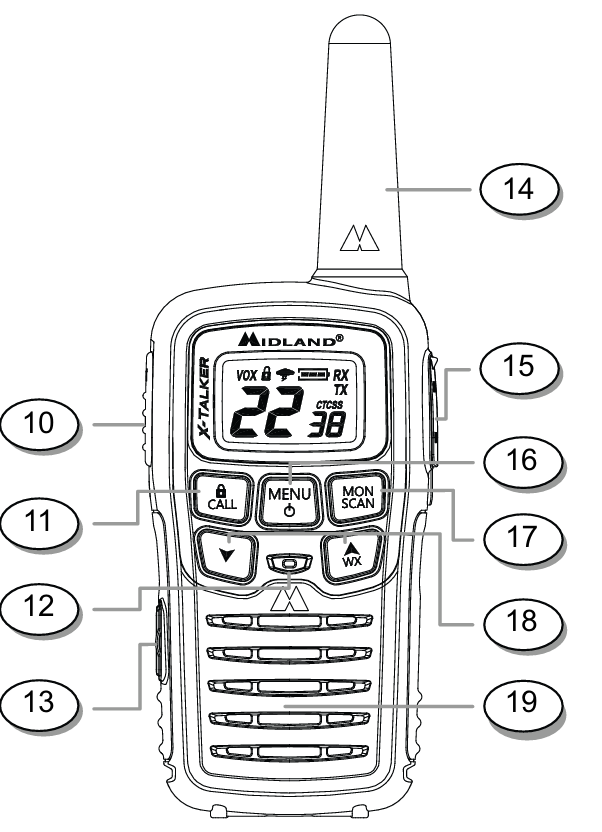

Radio Controls
- PTT (Push-To-Talk) – Press and hold to transmit
- CALL/LOCK – Press to send call alert; hold to toggle keypad lock
- MIC - Built-in microphone
- USB Charging Jack
- ANTENNA
- External Speaker/Mic Jack
- MENU Button - Press momentarily to access Menu Mode
- MONITOR/SCAN Button - Press to enter SCAN mode. Press and hold to enter MONITOR mode.
- UP/WX and DOWN Buttons - Make adjustments in MENU mode. Press and hold the UP button for 3 seconds to activate the NOAA Weather Radio function.
- Speaker - Built-in speaker
Battery Installation & Charging

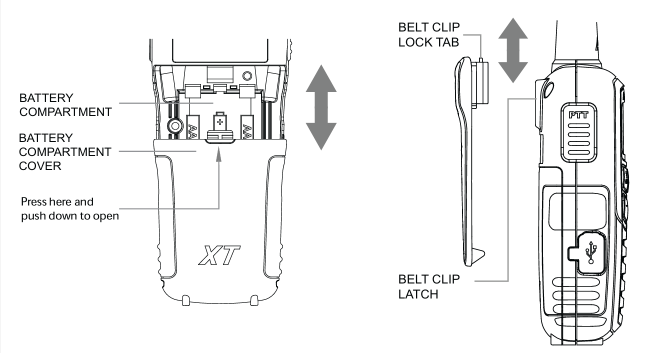

Installing Batteries
- Compatible with 3 AAA alkaline or rechargeable NiMH battery pack (BATT3R)
- Remove belt clip and battery cover to insert batteries
Charging the Radio
- Use included USB cable or optional desktop charger
- Charging indicator flashes 1–3 bars
- LCD shows "FULL" when charged
- Only use Midland’s NiMH battery pack
Powering On and Volume
- Hold MENU/POWER for 3 seconds to power on/off
- Use ▲/▼ to adjust volume during standby or receiving
Resetting the Radio
- Hold ▲ while turning the radio on to restore factory defaults
Basic Operation
- All radios must be set to the same channel + privacy code for communication
- TX icon appears when talking; RX when receiving

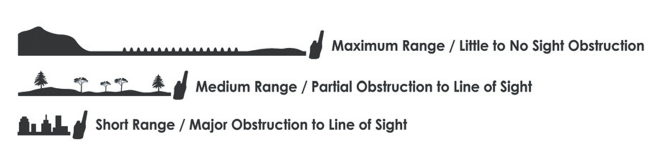

Range Tips
- Use in flat or open areas for maximum range
- Fully charge or replace batteries
- Use Hi Power settings if available

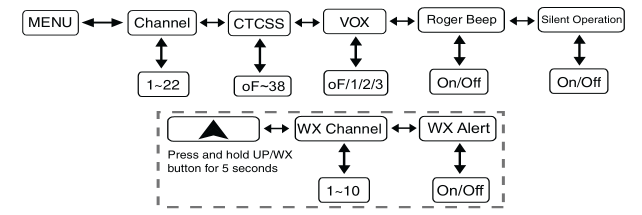

Quick Reference Chart
Feature Details
Monitor
- Hold MONITOR for 3 sec to hear background signal
Scan
- Press SCAN to scan 22 channels for activity
- Stops on active channel for 6 seconds
VOX
- Enables hands-free communication
- 3 sensitivity levels (1 = most sensitive)
- Turn off with VOX → “oF”
Roger Beep
- Sends tone when releasing PTT
- Toggle in MENU → “rb”
Silent Operation
- Disables all beeps/tones
- Toggle in MENU → “bP”
NOAA Weather Features
Accessing Weather Radio
- Hold ▲ for 5 seconds
- Use MENU to choose channel (1–10)
Enabling Weather Alerts
- In WX mode, press MENU twice → “AL” shows
- Toggle with ▲/▼ and confirm
External Audio Accessories
- Plug headset or mic into SPK/MIC jack
- Position mic and earbud for comfort
Troubleshooting
| Problem | Solution |
|---|---|
| No Power | Check/replace batteries |
| Can't Receive | Match channel/privacy code; check range |
| Dim Display | Recharge/replace batteries |
| No Button Response | Unlock keypad or reset radio |
Technical Specifications
- Channels: 22 FRS + 10 NOAA WX
- Privacy Codes: 38 CTCSS
- Frequencies: 462.5500–467.7125 MHz (FRS), 162.400–163.275 MHz (WX)
- Power: 3 AAA alkaline or Midland BATT3R pack
Accessories (Available at midlandusa.com)
- AVPH1–AVPH10 headset options
- AVP1 Over-the-ear headset
- BATT3R Rechargeable battery pack
- Desktop chargers and shoulder speaker mics
Limited Warranty (U.S. Only)
- Three-year warranty from date of purchase on radios.
- 90-day warranty on accessories.
- Does not cover misuse, water damage, or unauthorized repair.
- Submit warranty claims in the Midland Returns and Claims Portal
Download the full owner's manual here.
