Congratulations on your purchase of the Midland MXR10 GMRS Repeater. This repeater represents advanced Midland engineering, designed specifically for General Mobile Radio Service (GMRS) operation.

The MXR10 is compact yet powerful, built for reliable, long-term performance using all solid-state circuitry and high-quality components.

Key Features

  • 10W High Power / 5W Low Power
  • 16 Channel Capability
  • Pre-configured for 8 Wide Band and 8 Narrow Band GMRS Repeater Pairs
  • Independent Receive and Transmit Privacy Tone Selection via PC Software
  • Adjustable Wide/Narrow Band Settings via PC Software
  • Adjustable High/Low Power via PC Software
  • Adjustable Noise Squelch Level via PC Software
  • Adjustable Repeater Delay (Hang) Time via PC Software
  • Keypad Lock Function
  • 1-Year Warranty
  • Compatible with Midland Repeater-Capable GMRS Mobiles and Portables
  • GMRS License Required

FCC Notice

The MXR10 operates on GMRS frequencies that require a Federal Communications Commission (FCC) license.

Licensing Requirements:

  • Serious penalties may apply for unlicensed operation.
  • You will receive a call sign from the FCC that must be used for station identification when using the repeater.
  • Always operate with proper etiquette to avoid interference and minimize transmission time.

To apply for a license:

  • Visit fcc.gov or call 1-888-CALL FCC.

Radio Frequency Exposure

The MXR10 complies with national and international RF exposure guidelines:

  • Minimum safe distance: 50 inches (127 cm) from the antenna when the repeater is operating.
  • Maximum antenna gain: 8.1 dBi.

Compliant with:

  • FCC CFR: 47 Part 2 Subpart J
  • ANSI/IEEE C95.1-1992 & IEEE C95.1-1999
  • NCRP Report 86, 1986
  • ICNIRP 1998 standards

Installing Your Radio

Power Options

  • 120 VAC via included AC power adapter.
  • 12 VDC via included DC power adapter.

Recommended Installation Environment

  • Clean, dry, and shaded from direct sunlight.
  • Accessible for power connection and antenna cabling.

Installation Tips:

  • Read all instructions before starting.
  • Ensure all required tools, parts, and materials are ready.

Installing an Antenna

  • The MXR10 requires an external 50Ω antenna mounted to a permanent outdoor structure.

Antenna Setup Guidelines:

  1. Mount as high as possible to reduce signal obstructions.
  2. Keep the antenna cable short to minimize signal loss.
  3. Ensure the metal ferrule at the antenna base extends above the mounting mast.
  4. Secure the antenna with at least two clamps.
  5. Install lightning arrestors and proper grounding for the antenna and mast.
  6. If the antenna structure exceeds 20 ft near an airport or 200 ft in any location, review FCC/FAA regulations (47 CFR Part 17).

Connecting Repeater Cables

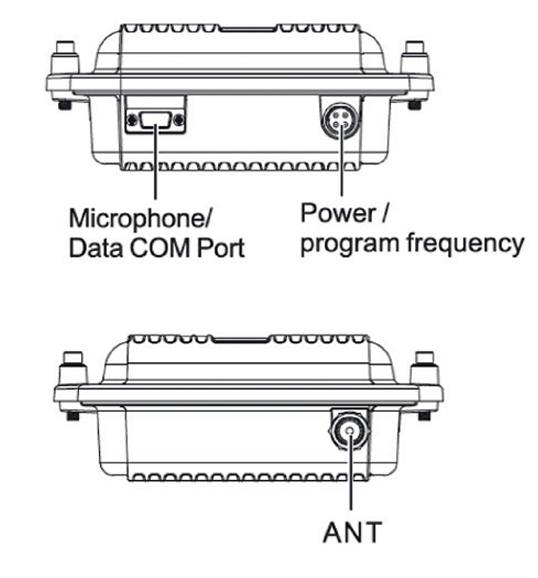

Refer to the Port Connections Diagram for connector locations.

  1. Connect the antenna cable to the SO239 ANT port.
  2. Connect AC or DC adapter to the 4-pin POWER port.
  3. Connect the AC adapter to a 120V AC outlet or connect the DC adapter to a 12V DC power source.
  4. The repeater powers on automatically when power is applied.
  5. (Optional) Connect a speaker microphone to the 9-pin MIC port.
  6. For programming, connect the PC programming cable to the 4-pin POWER port.
    • Disconnect the speaker microphone during programming.

Controls and Indicators

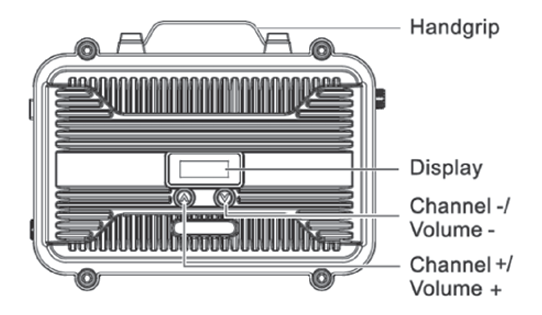

Operation Controls

Your Midland GMRS repeater is designed to comply with national and international standards and guidelines regarding exposure of human beings to radio frequency electromagnetic energy.

Volume Control

  • Short press ▲: Increase volume.
  • Short press ▼: Decrease volume.

Channel Selection

  • Long press ▲: Advance to next channel.
  • Long press ▼: Return to previous channel.

View Privacy Codes

  • Short press ▲ and ▼ together to view current CTCSS/DCS settings.

Keypad Lock

  • Long press ▲ and ▼ together to toggle keypad lock.

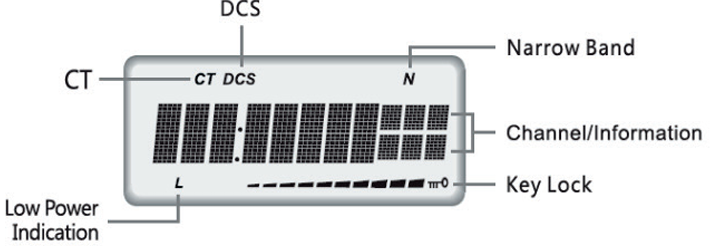

LCD Screen

Displays channel, CTCSS/DCS settings, volume, and lock status.

Operating Your Repeater

  • The repeater turns on automatically when power is supplied.

Channel Selection

  • Channels 1–8: Wide Band, High Power (default).
  • Channels 9–16: Narrow Band, High Power (default).

Further customization (privacy tones, squelch, power level, delay time) is available via PC software.

Default Channel Configuration

Channel RX Frequency TX Frequency RX CTCSS/DCS TX CTCSS/DCS Bandwidth Power
1 467.5500 462.5500 None None Wide High
2 467.5750 462.5750 None None Wide High
3 467.6000 462.6000 None None Wide High
4 467.6250 462.6250 None None Wide High
5 467.6500 462.6500 None None Wide High
6 467.6750 462.6750 None None Wide High
7 467.7000 462.7000 None None Wide High
8 467.7250 462.7250 None None Wide High
9 467.5500 462.5500 None None Narrow High
10 467.5750 462.5750 None None Narrow High
11 467.6000 462.6000 None None Narrow High
12 467.6250 462.6250 None None Narrow High
13 467.6500 462.6500 None None Narrow High
14 467.6750 462.6750 None None Narrow High
15 467.7000 462.7000 None None Narrow High
16 467.7250 462.7250 None None Narrow High

Care and Maintenance

  • Clean using a water-moistened soft cloth.
  • Do not use alcohol, solvents, or immerse the repeater in water.
  • Dry immediately with a lint-free cloth if wet.

Technical Specifications

Channel Capacity: 16 Channels
Operating Voltage: 12 – 24 VDC
Operating Temperature: -22°F to +140°F
Frequency Stability: ±2.5 ppm
Impedance: 50 Ω
Input Power: 10 W
Frequency Separation: 5 MHz
Insertion Loss: 2 dB
Isolation: 65 dB
Return Loss: 15 dB

Frequency Range (TX): 462.5500 – 462.7250 MHz
Frequency Range (RX): 467.5500 – 467.7250 MHz
Transmit Power: 10W High / 5W Low
Transmit Power (with Duplexer): 5.7W High / 2.8W Low
Modulation: F3E
Maximum Deviation: ±5 kHz (Wide) / ±2.5 kHz (Narrow)

Receiver Sensitivity:

  • 0.20 µV (Wide) / 0.25 µV (Narrow)
  • 0.25 µV (Wide) / 0.32 µV (Narrow) with Duplexer

FM Hum and Noise: 45 dB (Wide) / 40 dB (Narrow)
Distortion: 5%

Troubleshooting

If you experience problems:

  • Contact Midland Customer Service at 816-241-8500 (M–F, 9 AM–4:00 PM CST).
  • Many issues can be resolved over the phone without returning the unit.

FCC Statements

  • Unauthorized changes to this device may void your FCC authorization.
  • Complies with FCC Part 15:
    • (1) Device must not cause harmful interference.
    • (2) Device must accept any interference received.

Accessories

RPAT01 Repeater Antenna

  • 10 dB Gain
  • 2 Meter Length
  • Compatible with MXR10 Repeater and RPCB01 Cable

RPCB02 Coax Cable

  • 50 ft Length
  • Compatible with MXR10 Repeater and RPAT01 Antenna

Limited Warranty (U.S. Only)

  • Three-year warranty from date of purchase on radios.
  • 90-day warranty on accessories.
  • Does not cover misuse, water damage, or unauthorized repair.
  • Submit warranty claims in the Midland Returns and Claims Portal
