Midland has a broad range of mounting systems for our GMRS antennas. But which one is right for your antenna and where you want it located? Read on to get to know this product line!

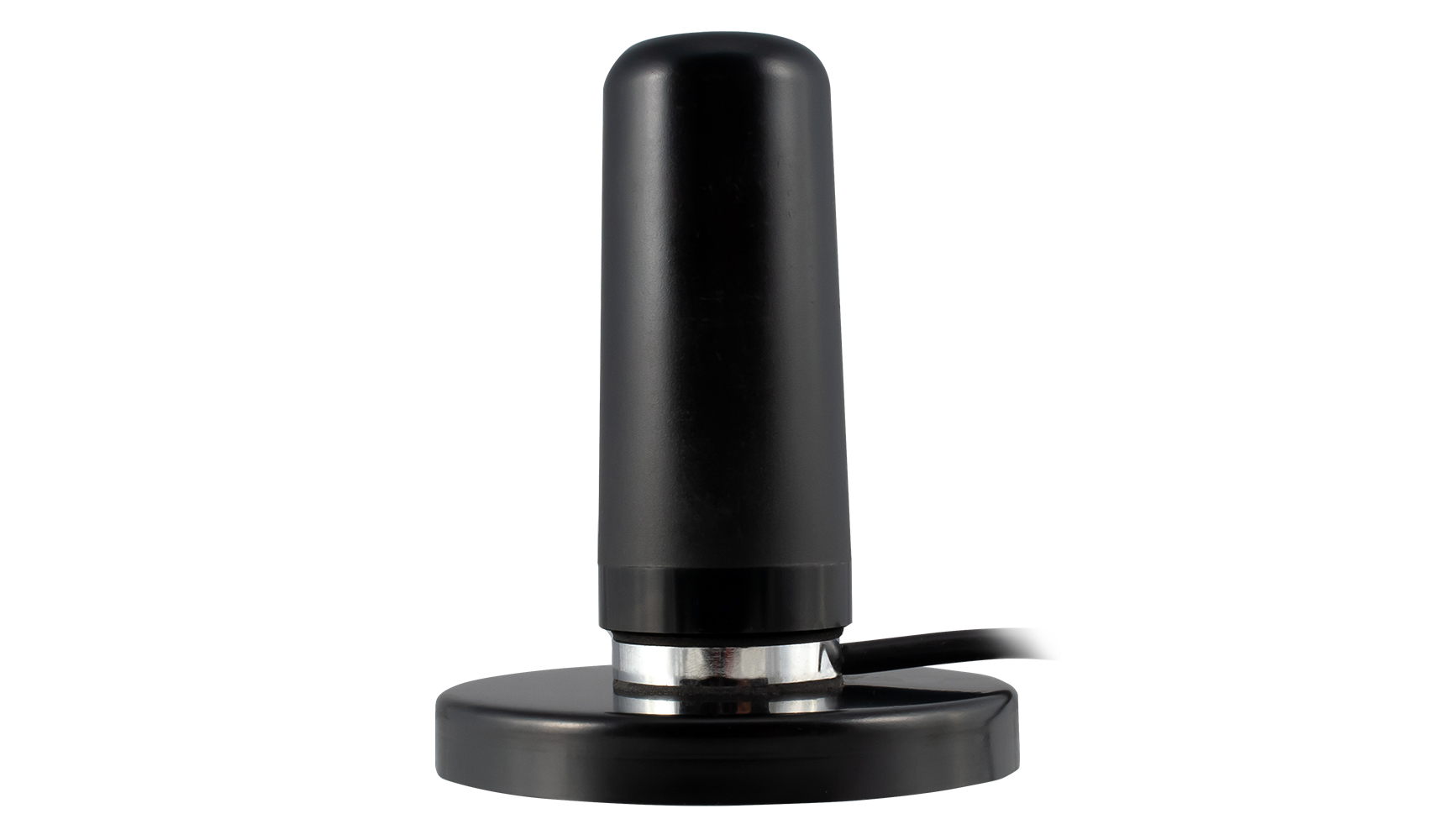

MXTA12 Antenna Mag Mount
This is a magnetic mount that can be used with MicroMobile antennas. It includes the rubber boot and 6 meter (20 ft) coaxial cable.
The mount diameter is 3.5 in.
With this mount you have the ability to switch out different antennas, as opposed to the mount that comes with the standard MXT575 package. For example, you might want to use the MXTA25 Ghost Antenna in the city, but switch to the MXTA26 Whip Antenna in an off-road environment.

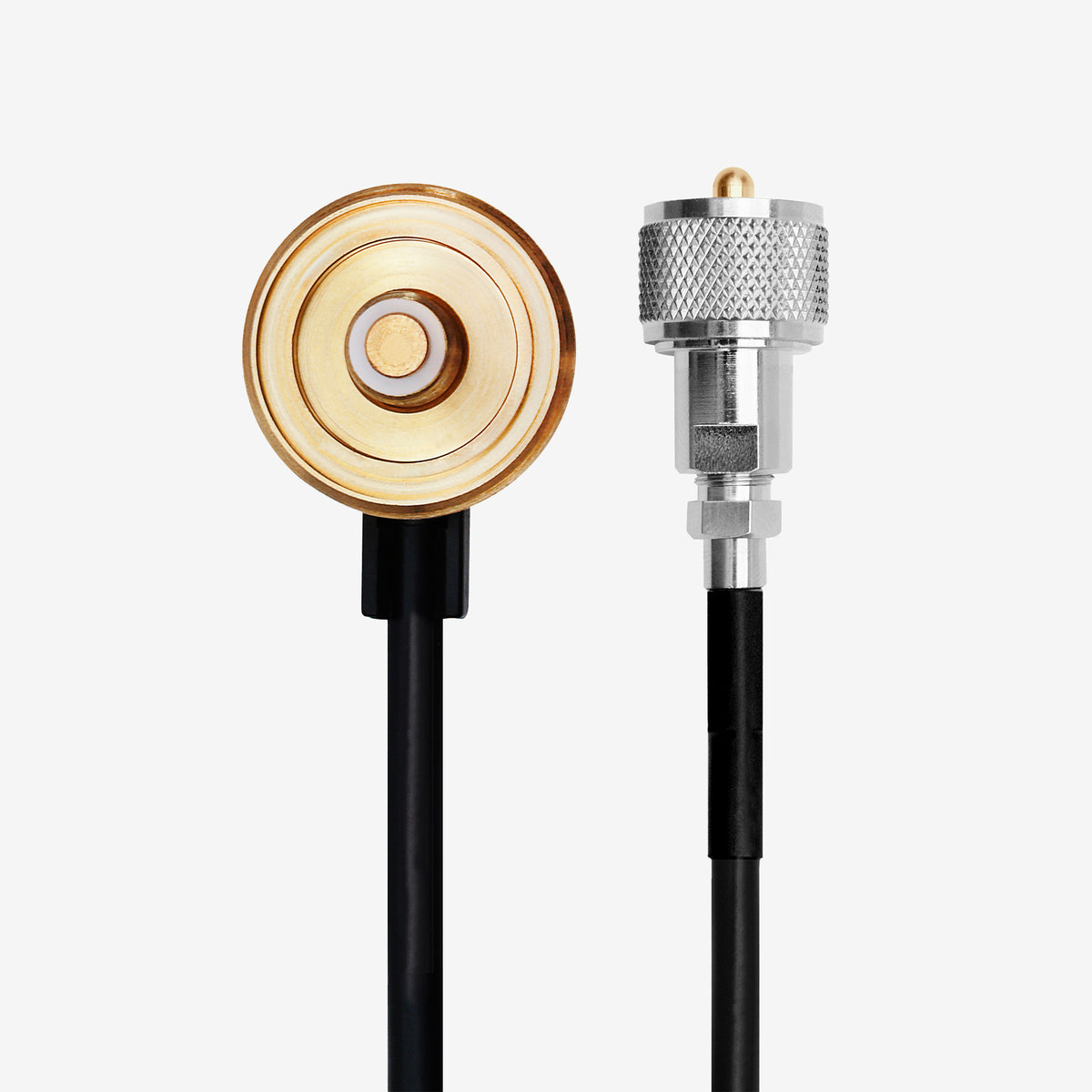

MXTA24 MicroMobile Low Profile Antenna Cable
This cable is compatible with the MXTA21, MXTA33, MXTARRSM, MXTARRLG, MXTARRJK or any other bracket with 3/4" and 3/8" mounting holes. Please see this document for assembly instructions.

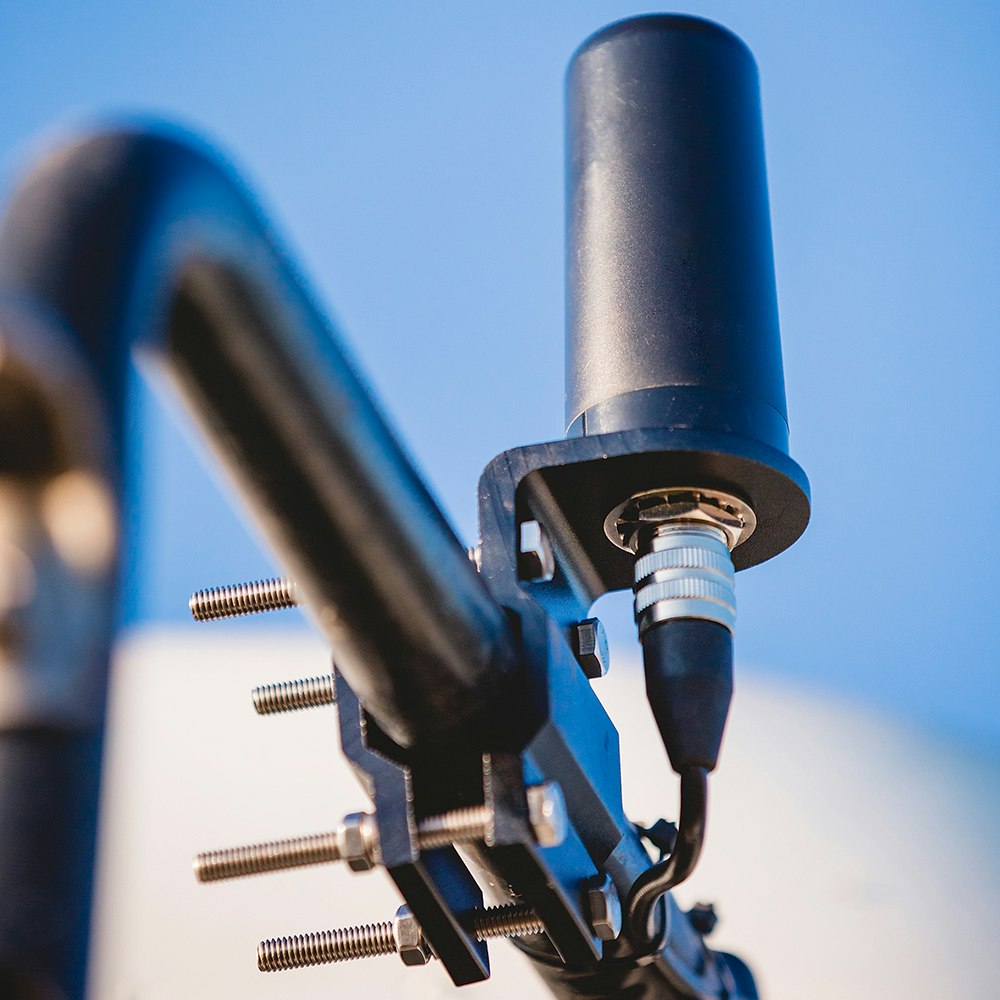

MXTA23 Roll Bar/Mirror Mounting Bracket
This mounting bracket attaches to roll bars, roof racks, and mirrors. This mirror/roll bar antenna bracket includes the necessary bolts.
It has a 2 inch base diameter and a 16mm hole.
This bracket is compatible with all of Midland's MicroMobiles when paired with the MXTA24 universal coax and either the MXTA26 or MXTA25 antennas.
The MXTA23 is designed to mount to horizontally oriented tubing. The bolts are spaced 2 inches on center, so allows for 1.75 inches between them for tubing clearance. If the tubing is oval, the maximum vertical cross section is still 1.75 inches, but the horizontal cross section can be larger than this, and longer stainless steel bolts can be used to provide more clearance in the horizontal dimension.
**The compatible NMO connector and cable are not included in this mirror/roll bar mounted bracket.

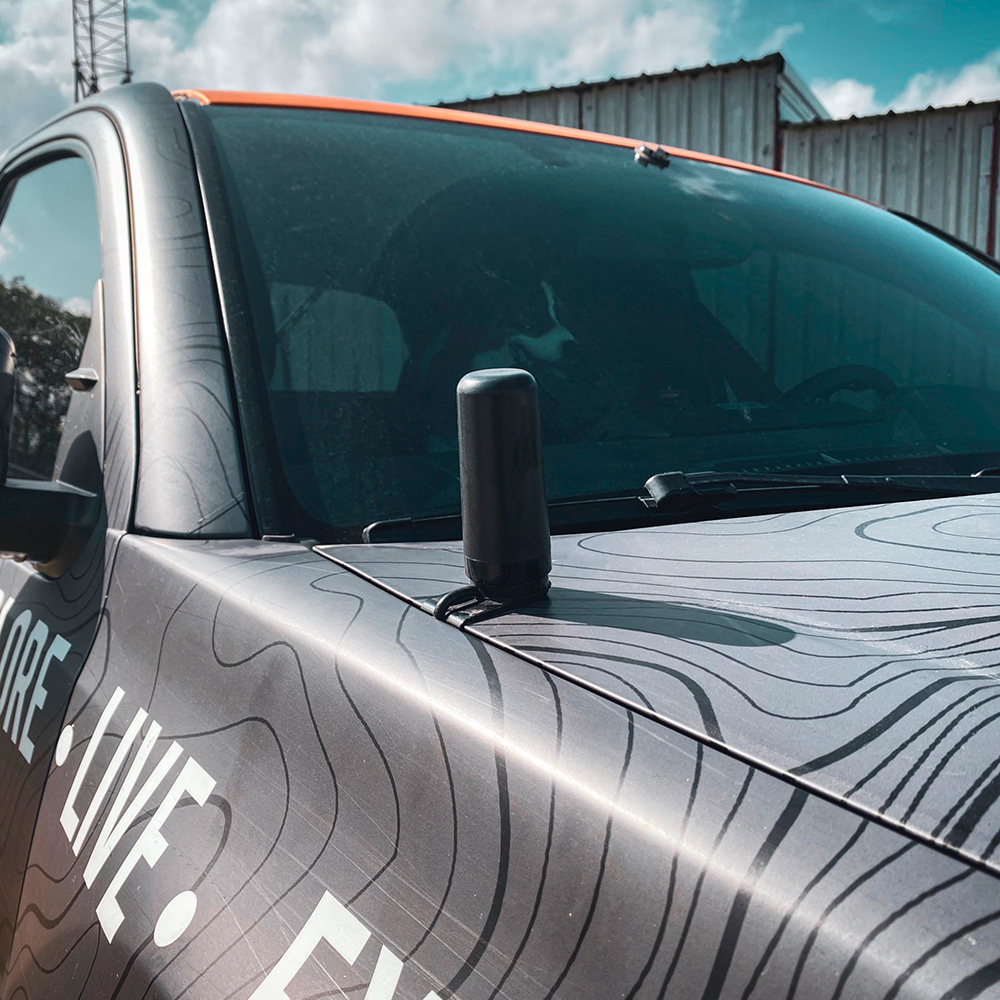

MXTA27 Universal Lip Mount
This NMO lip mount attaches to almost any truck or hood without drilling. The 6-meter (20 ft) antenna mount features a UHF connection that unscrews for easy installation in your vehicle. It's perfect for anyone who doesn't want to drill holes in their vehicle but needs a solid mount to provide reliable communication on- or off-road.
This bracket is compatible with all of Midland's MicroMobiles and compatible with either the MXTA26 or MXTA25 antennas.
The mount includes a UHF to NMO adapter and FME to UHF adapter.
MXTA21 Jeep®Wrangler Bracket Mount
This bracket is meant to easily install on 2007-2018 Jeep® Wrangler JK. Use your Jeep's torx screws to secure this Jeep antenna mount to your vehicle on the driver's side.
The mount comes with a 3/8-inch hold for NMO antenna.
This bracket is compatible with all of Midland's MicroMobiles when paired with the MXTA24 universal coax and either the MXTA26 or MXTA25 antennas.

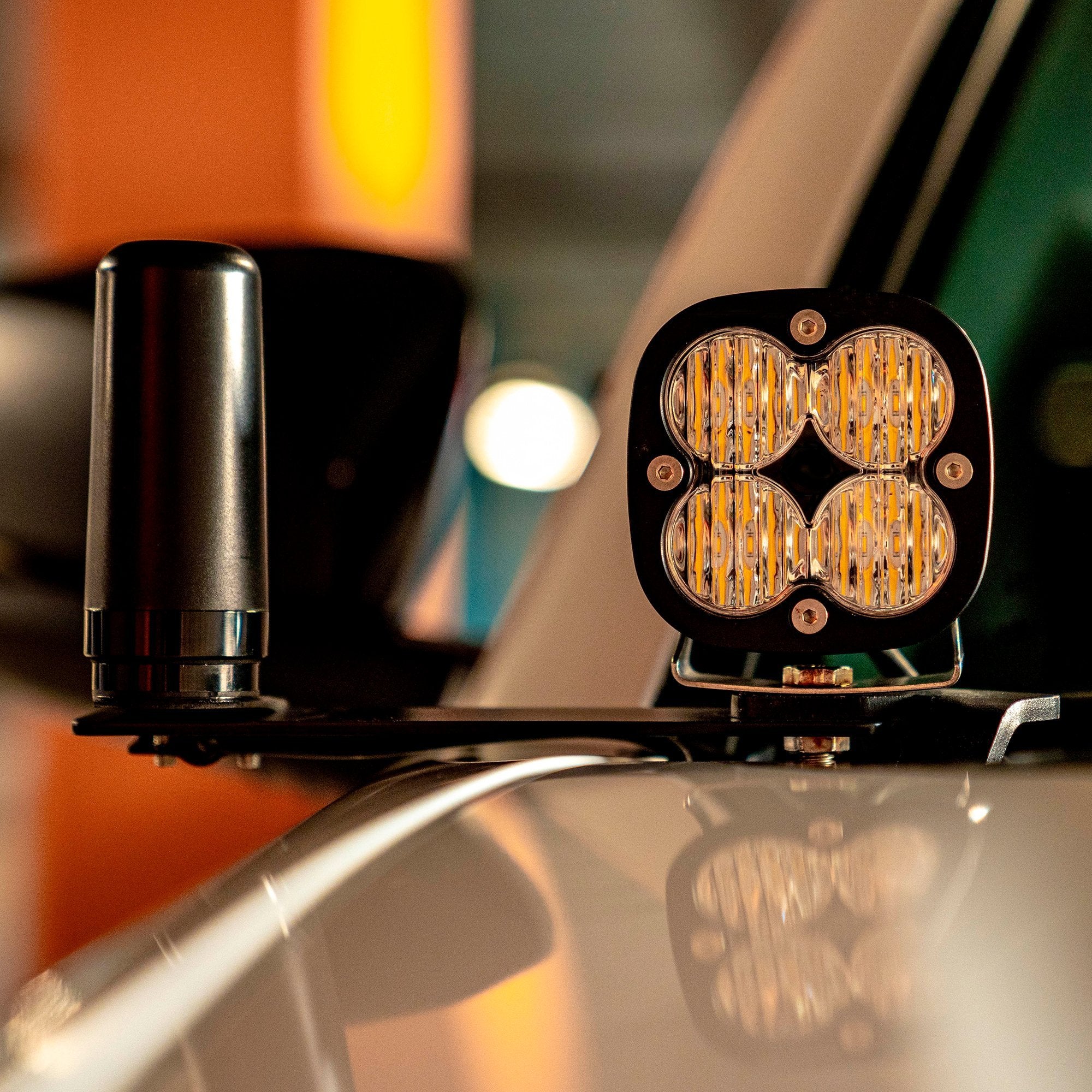

MXTA22 Ditch Light Extension Bracket
This ditch light extension bracket mounts to most ditch lights on any vehicle and can be mounted on either the driver or passenger side.
It comes with a 5/8 inch hole for NMO antenna and is compatible with the MXTA24 universal coaxial cable.
MXTARRJK Antenna Mount for Jeep®Wrangler JK
This spare tire carrier antenna mounting bracket is specially designed to mount the MXAT01VP Grand Vista 7.5dB antenna to your Jeep® Wrangler JK. The bracket is very durable and connects directly to the factory tire carrier on your 2007-2018 Jeep® Wrangler JK with no drilling necessary.
Each powder coat painted, textured black steel bracket is extremely durable and provides a hidden mounting point for your antenna. While this fits most Midland antennas and some aftermarket antennas, it's most compatible with the Midland Grand Vista.
The bracket comes with its mounting hardware.

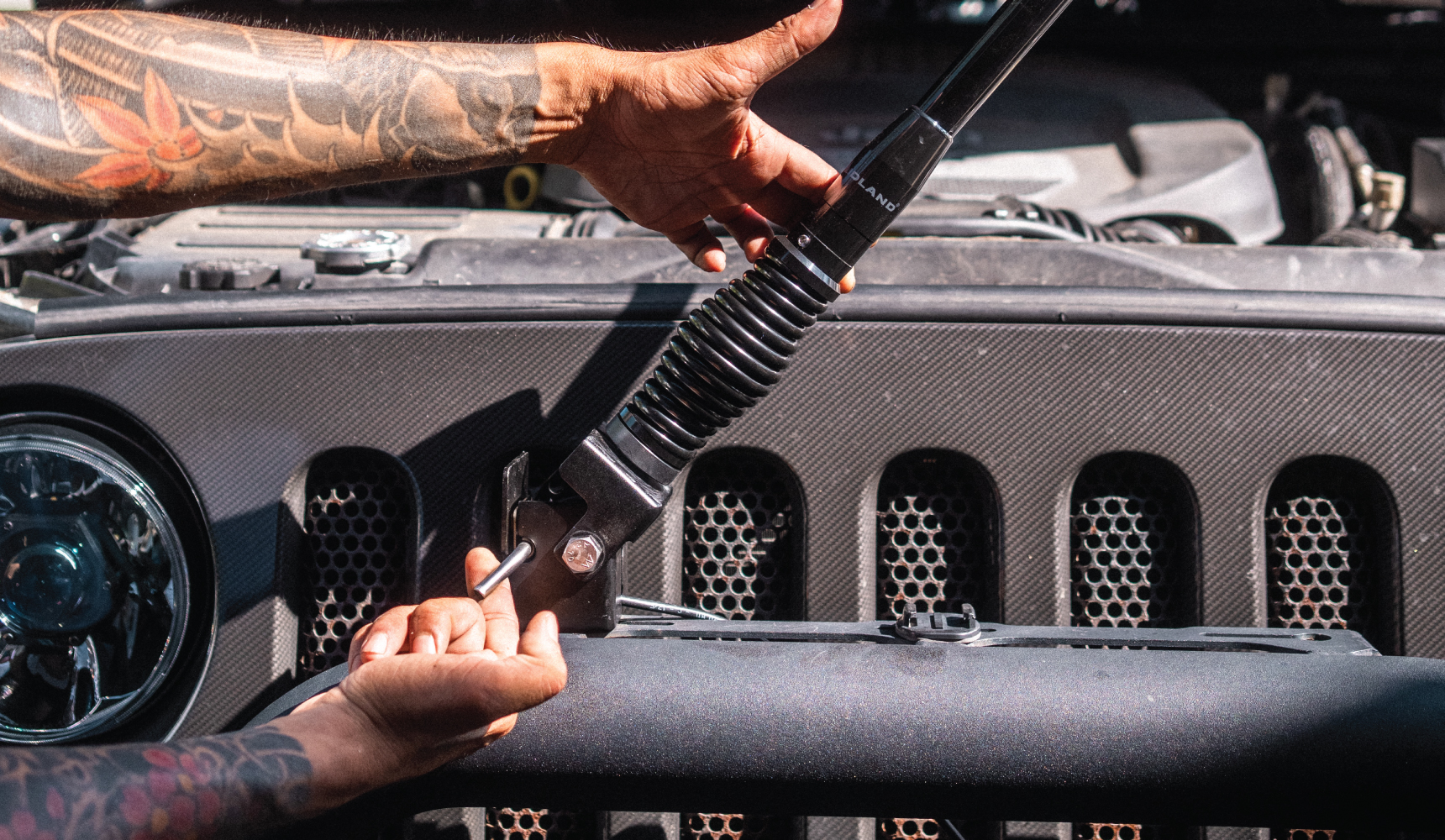

MXATMT2 Folding Bull Bar Antenna Mount
Midland's bull bar** folding antenna mount makes it easier than ever to bring heavy-duty performance to two-way radios with a simplified installation. This bracket will require a 1/2 inch hole to be drilled.
This mount features a stainless steel folding mount, 12 mm stud for bottom mount, a 13 mm top mounting and works with the Midland Bull Bar antenna line:
- MXAT03 - 3 dB Gain Canyon Edge Bull Bar Antenna
- MXAT04 - 6.6 dB Gain Highland Tall Heavy-Duty Bull Bar Antenna
- MXAT04VP - 6.6 dB Gain Highland Tall Heavy-Duty Bull Bar Antenna System
- MXAT05VP - 3 dB Gain Highland Heavy-Duty Bull Bar Antenna System
Watch this video for a detailed installation demonstration.

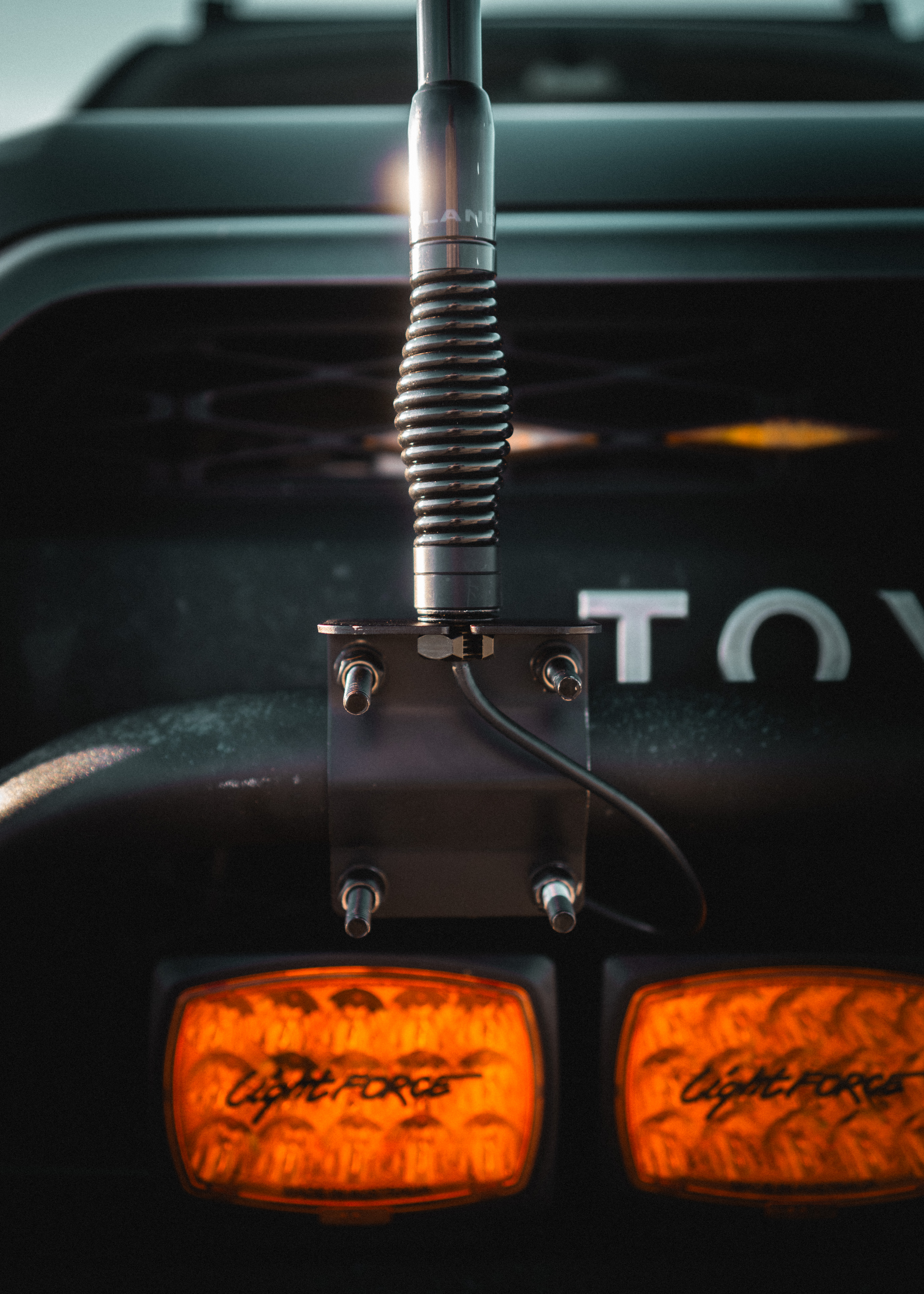

MXATMT1 Clamp Bull Bar Antenna Mount
Midland's bull bar** clamp antenna mounting bracket makes for a seamless, drill-free installation that will support your bull bar antenna for heavy-duty performance.
This mount features a stainless steel clamp mount. The max bar size for the U-bold is 62 mm or 2 7/16 inches and works with the Midland Bull Bar antenna line:
- MXAT03 - 3 dB Gain Canyon Edge Bull Bar Antenna
- MXAT04 - 6.6 dB Gain Highland Tall Heavy-Duty Bull Bar Antenna
- MXAT04VP - 6.6 dB Gain Highland Tall Heavy-Duty Bull Bar Antenna System
- MXAT05VP - 3 dB Gain Highland Heavy-Duty Bull Bar Antenna System
- MXAT01VP - 7.5 dB Gain Grand Vista Fiberglass Antenna System
Watch this video for a detailed installation demonstration.
** Please note that these mounts designated as Bull Bar mounts, are intended to be mounted on very sturdy parts of the vehicle, which is why these are named as such. We do not recommend mounting on other areas, such as the roof rack. **
